3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional

3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional
3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional 3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional 3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional

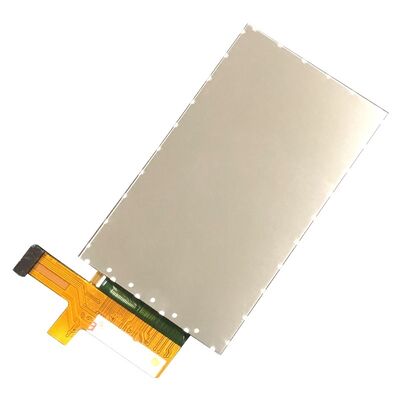

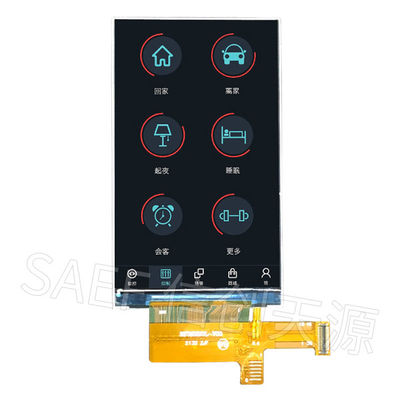

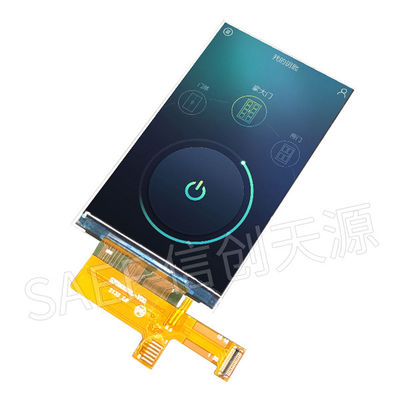

Großes Bild :  3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional

Produktdetails:
Herkunftsort: Shenzhen / China
Markenname: SAEF
Zertifizierung: ISO9001 / ISO14000
Modellnummer: SF-TO310AS-8984A-N
Zahlung und Versand AGB:
Min Bestellmenge: 3 Einheiten (Verhandelbar für Musterbestellungen)
Preis: USD5.0 - 6.0 (FOB Shenzhen, Price varies based on order quantity & configuration)
Verpackung Informationen: Standard-Exportpaket
Lieferzeit: 3 Arbeitstage für Muster, 5-6 Wochen für MP
Zahlungsbedingungen: L/C, T/T, Paypal
Versorgungsmaterial-Fähigkeit: 3000 000 Stück pro Monat

3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional

Beschreibung
Produkt: 3,1-Zoll-IPS-TFT-LCD Auflösung: 480 RGB × 800 Pixel
Schnittstelle: MIPI mit zwei Fahrspuren Treiber-IC: ST7701s
Helligkeit: 350 cd/m² (typisch) Ansichtsrichtung: 80° in alle Richtungen (CR ≥ 10)
Betriebstemp: -20 ° C bis +70 ° C. Notenunterstützung: I-² C Schnittstelle
Abmessungen: 43,48 × 74,72 × 1,6 mm Einhaltung: REACH- und RoHS-konform
Hervorheben:

3.1-inch IPS TFT LCD display

,

480×800 HD MIPI display module

,

350 nits IPS LCD module

3.1-inch IPS TFT LCD Display Module – HD Resolution, MIPI Interface, Industrial Grade with Optional Touch

Saef Technology Limited introduces a high-performance 3.1-inch IPS TFT LCD module, engineered for applications that demand excellent viewing angles, consistent color reproduction, and reliable operation. Featuring 480×800 HD resolution, MIPI interface, and optional capacitive touch, this display is ideal for portable medical devices, handheld instruments, industrial HMIs, smart home controls, and embedded systems where space, clarity, and interactivity are critical.



Key Features & Technical Advantages:

  • IPS Technology for Consistent Viewing Angles

80° viewing angle in all directions ensures minimal color shift and consistent image quality from any perspective—ideal for multi-user or off-axis viewing applications.

  • High Resolution & Color Performance

480×800 pixels with 16.7M color support deliver sharp text, graphics, and icons. NTSC gamut up to 60% provides vibrant and accurate color representation.

  • MIPI Interface for High-Speed Data Transfer

2-lane MIPI (D-PHY) reduces EMI, simplifies layout, and enables low-power operation—perfect for portable and battery-powered designs.

  • Wide Operating Temperature Range

Rated for -20°C to +60°C, ensuring stable performance in varying environmental conditions, from indoor control panels to field-deployed devices.

  • Integrated Touch Interface Ready

Pre-configured I²C pins (CTP_INT, CTP_RST, CTP_SDA, CTP_SCL) allow easy integration of capacitive touch panels for interactive applications.

  • Low Power Consumption with ST7701S Driver

Typical current consumption as low as 30mA in normal mode and 100µA in standby—optimized for energy-sensitive designs.

  • Compact Form Factor

Module size of 43.48mm × 74.72mm × 1.6mm (excluding FPC) allows integration into space-constrained products without compromising display area.

  • Customizable Touch & Mechanical Options

We offer semi-custom design services—add capacitive or resistive touch, modify bezels, adjust mounting points, or tune display firmware to match your system requirements.



Designed for Reliable Integration in Demanding Applications

Saef’s 3.1-inch TFT module addresses key engineering challenges in embedded display design:

  • MIPI signal integrity support with built-in impedance matching and noise suppression

  • Precise power sequencing guidelines to prevent latch-up and ensure long-term reliability

  • FPC with reinforced bend areas for reliable connections in compact or foldable designs

  • Detailed initialization code and timing diagrams provided for faster software integration

Whether you’re developing a portable diagnostic tool, an industrial handheld terminal, a smart thermostat, or a wearable device interface—this module delivers consistent performance and ease of integration.



Why Partner with Saef Technology?

  • Engineering-First Support: Our team provides signal integrity analysis, firmware customization, and thermal design guidance.

  • Fast Prototyping: Samples ship within 5–7 business days with complete documentation.

  • Quality & Traceability: Each unit is tested per AQL standards (Major 0.4, Minor 1.0) and supports full batch traceability.

  • Global Compliance: ROHS-ready and compatible with EU/US market requirements.



Ideal Applications:

  • Portable Medical & Diagnostic Devices

  • Industrial Handheld Terminals & HMIs

  • Smart Home & IoT Control Panels

  • Wearable Device Displays

  • Automotive Auxiliary Screens

  • Retail & Payment Terminals



Ready to Integrate a High-Performance Display?
Contact our technical sales team for datasheets, optical reports, touch panel options, or a customized product consultation. Let us help you bring clarity, reliability, and interactivity to your next embedded design.





Mechanical Dimensions

3.1-inch IPS TFT LCD Display Module – 480×800 HD, MIPI Interface, 350 nits, All Viewing Angle, Touch Optional 0

Interface Pin Definition



NO SYMBOL FUNCTION
1 GND Power Ground
2 CLKP MIPI clk
3 CLKN MIPI clk
4 GND Power Ground
5 DATA0P MIPI data
6 DATA0N MIPI data
7 GND Power Ground
8 DATA1P MIPI data
9 DATA1N MIPI data
10 GND Power Ground
11-12 NC NC
13 GND Power Ground
14-15 NC NC
16 LEDA LED Anode
17 LEDK LED Cathode
18 VDD Power Supply for Analog, VDD=2.5V~3.3V.
19 VDDIO Power Supply for logic, VDDIO=1.8V~3.3V.
20-21 NC NC
22-23 GND Power Ground
24 CTP_INT Touch panel interrupt output.
25 CTP_RST Touch panel reset.
26 CTP_SDA Touch panel I2C data.
27 CTP_SCL Touch panel I2C clock.
28

LCM_RST

This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
29 TE Tearing effect signal is used to synchronize MCU to frame memory writing.
30 GND Power Ground





Absolute Maximum Ratings



Item Symbol Min. Max. Unit
Supply Voltage Power supply VDD -0.3 +4.6 V
Analog - - - V
IO IOVDD -0.3 +4.6 V
Input Voltage Vi -0.3 IOVDD+0.3 V
Storage temperature T stg -30 +80 ºC
Operating temperature T op -20 +70 ºC
Storage humidity

Hstg

10 Note 1 %RH
Operating humidity H op 10 Note 1 %RH

Note 1: 90%RH max, If Ta is below 50ºC; 60%RH max, If Ta is over 60ºC.





DC Characteristics



Item Symbol Min. Typ. Max. Unit
Supply Voltage Power supply VDD 2.4 2.8 3.3 V
Analog VCI 2.4 2.8 3.3 V
IO IOVDD 1.65 1.8/2.8 3.3 V
Logic Low input voltage VIL -0.3IOVDD - 0.3IOVDD V
Logic High input voltage VIH 0.7IOVDD - IOVDD V
Logic Low output voltage VOL - - 0.2IOVDD V
Logic High output voltage VOH 0.8IOVDD - - V
Current Consumption Normal display Ivdd - 30 - mA
Standby mode Ivdd - 100 - uA
Frame Frequency fFR - 60 - Hz





Optical Specifications



Backlight On (Transmissive Mode) Item Symbol Condition Specification Unit
Min. Typ. Max.
Luminance on surface(If =15mA)

Lv

Normally

viewing

angle

θX = θY =0º

300

350

-

cd/m²

Contrast ratio CR - 1000 - -
Response time TR - 10 20

ms

TF - - 20 30







Chromaticity

Transmissive

Red XR











-

0.645 0.660 0.675 -
YR 0.300 0.315 0.330 -
Green XG 0.229 0.244 0.259 -
YG 0.554 0.569 0.584 -
Blue XB 0.128 0.143 0.158 -
YB 0.073 0.088 0.103 -
White XW 0.273 0.288 0.303 -
YW 0.293 0.308 0.326 -

Viewing

Angle

Horiz

ontal

θX+



Center

CR≥10

- 80 -





Deg.

θX- - 80 -

Vertic

al

θY+ - 80 -
θY- - 80 -
  NTSC Ratio(Gamut) - - - 60 - %
